Tethering a Hasselblad X2D 100C should be the last thing on your mind during a shoot. Plug in, fire, see the frame. Instead, most photographers spend the first 20 minutes of every session wrestling with disconnections, laggy transfers, or software that acts like it's never seen a camera before.
The good news: almost every X2D tethering problem comes back to one thing. This guide covers that one thing — plus the complete software setup for Phocus and Capture One, and fixes for the issues that actually happen on set.
Start Here: What Cable the X2D Actually Needs
The X2D 100C shoots 100-megapixel raw files. Each frame is around 200MB. On a slow cable, that means waiting 5–10 seconds between shots for the image to land on your laptop. On the right cable, it's near-instant.
The X2D supports USB 3.2 Gen 2 — 10Gbps. That's the spec your cable needs to match.
Minimum cable spec for reliable X2D tethering:
· Connector: USB-C (camera end) — USB-C or USB-A (laptop end)
· Speed: 10Gbps (USB 3.2 Gen 2) — not 5Gbps, not USB 2.0
· Length: Active amplification required above 2m
· Camera connector: L-shaped — not straight
That last point matters more than most photographers expect. A straight USB-C cable creates a lever arm at the camera port. Every bump, every time an assistant steps over the cable, every slight camera movement — that's lateral force on the X2D's USB-C port. Over months of studio use, this leads to intermittent connections, then port damage.
An L-shaped connector runs the cable parallel to the camera body. The force goes into the connector body, not the port.

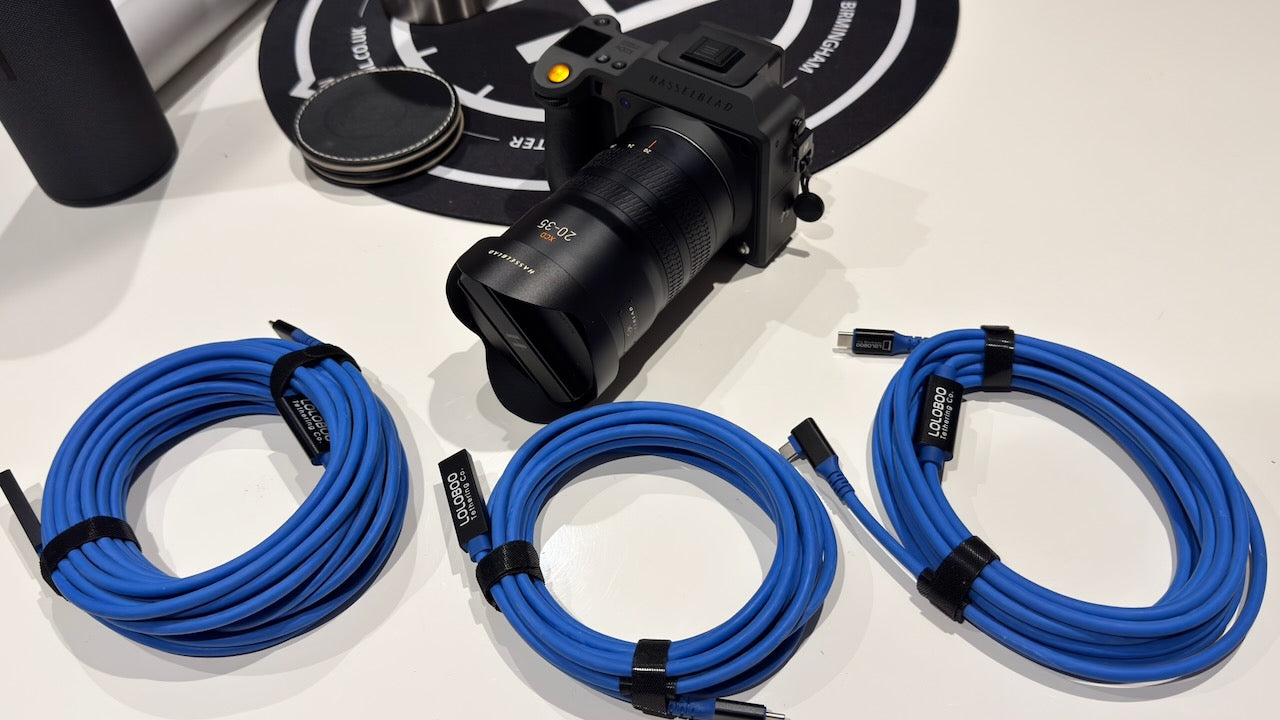

The Loloboo tethering cable was designed specifically for this setup — L-shape to straight, 10Gbps active, with a strain relief system built for cameras that stay plugged in all day.
Setting Up Tethering in Hasselblad Phocus
Phocus is Hasselblad's native software and the most direct tethering path for the X2D. The setup takes under two minutes when you do it in the right order.
Plug into the X2D first, then the laptop. Power on the camera. Then open Phocus. If you open Phocus first, it often misses the camera handshake and needs a full restart to recover.
On the camera: Menu → Connectivity → USB → Tethered Shooting. If it's set to Mass Storage, Phocus sees it as a hard drive. This is the most common reason tethering "doesn't work."
Look at the top bar in Phocus — you should see the camera model and battery level. If nothing appears, check the USB mode on the camera before assuming anything else is wrong.
Capture → Destination — choose a folder on a local SSD. Capturing to a network drive or spinning disk adds enough latency with 200MB files to cause apparent disconnections and queuing.
Fire 5–6 frames quickly. All images should appear in Phocus within a couple of seconds. If they queue slowly, your cable is the bottleneck — check it's genuinely rated at 10Gbps, not a USB-C charging cable.
Setting Up Tethering in Capture One
Capture One is the preferred choice for client-facing sessions — live adjustments, style previews, and a proper viewing layout. Setup is slightly different from Phocus.
Unlike Phocus, Capture One should be running before you connect the camera. Open it, then connect the cable, then power on the X2D.
Camera → Enable Tethering. The X2D should appear in the tethering toolbar at the top of the window.
Capture → Capture Location — local SSD, not a network folder.
Firmware note: Capture One's X2D support is firmware-version specific. If tethering fails to connect, check you're on the latest X2D firmware (Hasselblad.com) and the latest Capture One release before troubleshooting anything else.
The 5 Most Common X2D Tethering Issues — Fixed
✗ Camera not detected at all
Check USB mode on the camera first. It needs to be set to "Tethered Shooting" — not "Mass Storage." This is the cause in the majority of cases. Takes 10 seconds to check.
✗ Disconnects every 10–15 minutes
Cable quality issue. A cable rated for charging — even USB-C — lacks the shielding for sustained 10Gbps data. Replace with a cable rated explicitly at 10Gbps with active amplification for any run over 2m.
✗ Images take 5–10 seconds to appear
Two places to check: cable spec (must be 10Gbps, not 5Gbps) and capture destination (must be local SSD — network drives and spinning disks can't keep up with 200MB files).
✗ Camera recognised but no images transfer
Restart both the software and the camera with the cable already plugged in. Also check that the capture folder has write permissions — macOS sometimes strips them after OS updates.
✗ Connector keeps working loose
The weight of a long cable slowly pulls the connector out over the course of a shoot. Anchor the cable to the camera body using a strain relief clip or the Loloboo Block. The port takes zero load, and the connector stays seated.
5m or 10m? Choosing the Right Length
For most studio setups — camera on a tripod or arm, laptop on a side table — 5m covers the distance with comfortable slack. It's the right call for the majority of portrait, product, and fashion shoots.
Go to 10m when:
- The client or art director is viewing on a separate monitor across the set
- You're working a large stage or location where the laptop can't sit near the camera
- You want zero cable management compromise — enough length to route cleanly without pulling tight
Both the Loloboo 5m and 10m run active 10Gbps signal — you don't trade speed for length.
Protect the Port — It's the Only One You've Got
The X2D's USB-C port is your tethering workflow's single point of failure. Port damage means no tethering until it goes in for repair — which on a Hasselblad means time and cost you don't want.
Two habits that protect it:
- L-shaped connector at the camera end — eliminates lateral stress entirely
- Cable anchor on the body — takes the cable weight off the port so the connector doesn't take load all day
The Loloboo Block is built for exactly this — it mounts to your quick-release plate and routes the cable so the port is protected throughout the shoot.
The Short Version
Reliable Hasselblad X2D tethering comes down to three things: a 10Gbps cable with an L-shaped connector, the camera set to Tethered Shooting mode, and a cable anchor to protect the port. Get those right and you won't think about tethering again.
